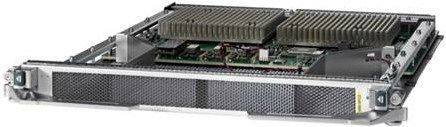

Інтерфейсний модуль Cisco A99-SFC2-T

Switch fabric card

A99-SFC2

For simplicity and common sparing, this switch fabric card is introduced on Cisco IOS XR Software Release 5.3.0, and it supports both ASR 9912 and ASR 9922 chassis.

Поддержка лайн-карт

●  A9K-8X100GE-LB-SE

●  A9K-8X100GE-LB-TR

●  A9K-8X100GE-SE

●  A9K-8X100GE-TR

●  A9K-4X100GE-SE

●  A9K-4X100GE-TR

●  A9K-2X100GE-TR

●  A9K-2X100GE-SE

●  A9K-1X100GE-TR

●  A9K-1X100GE-SE

●  A9K-36X10GE-TR

●  A9K-36X10GE-SE

●  A9K-24X10GE-TR

●  A9K-24X10GE-SE

●  A9K-MOD160-SE

●  A9K-MOD160-TR

●  A9K-MOD80-SE

●  A9K-MOD80-TR

●  A9K-VSM-500

Физические характеристики

Each switch fabric card occupies 1 slot; a full-capacity redundant configuration can occupy from 5 to 7 slots in Cisco ASR 9922 and ASR 9912 chassis, depending on the line cards used. (Please refer to the Cisco ASR 9000 Series Aggregation Services Router Overview and Reference Guide for more details.)

Height: 1.81 in. (4.60 cm)

Width: 16.87 in. (42.85 cm)

Depth: 24.74 in. (62.89 cm)

Weight: 12 lb (5.44 kg)

Условия окружающей среды

●  Operating temperature: 32 to 104°F (0 to 40°C)

●  Storage temperature: -40 to 167°F (-40 to 75°C)

●  Relative humidity: 10 to 90%, noncondensing

Рабочая температура

23 to 131ºF (-5 to 55ºC)

Note: Short-term refers to a period of not more than 96 consecutive hours and a total of not more than 15 days in 1 year (a total of 360 hours in any given year, but no more than 15 occurrences during that 1-year period).

Рабочая влажность

10 to 85%

Температура хранения

-40 to 158ºF (-40 to 70ºC)

Влажность хранения

5 to 95 percent
Note: Not to exceed 0.024 kg water or dry air

Operating altitude

-60 to 4000m (up to 2000m conforms to IEC/EN/UL/CSA 60950 requirements)

Compliance

Network Equipment Building Standards (NEBS)

Cisco ASR 9900 is designed to meet these standards:

●  SR-3580: NEBS Criteria Levels (Level 3)

●  GR-1089-CORE: NEBS Electromagnetic Compatibility (EMC) and Safety

●  GR-63-CORE: NEBS Physical Protection

●  VZ.TPR.9205: Verizon TEEER

ETSI standards

Cisco ASR 9900 platforms are designed to meet these standards (qualification in progress):

●  EN300 386: Telecommunications Network Equipment (EMC)

●  ETSI 300 019 Storage Class 1.1

●  ETSI 300 019 Transportation Class 2.3

●  ETSI 300 019 Stationary Use Class 3.1

●  EN55022: Information Technology Equipment (Emissions)

●  EN55024: Information Technology Equipment (Immunity)

●  EN50082-1/EN-61000-6-1: Generic Immunity Standard

EMC standards

Cisco ASR 9900 platforms are designed to meet these standards:

●  FCC Class A

●  ICES 003 Class A

●  AS/NZS 3548 Class A

●  CISPR 22 (EN55022) Class A

●  VCCI Class A

●  BSMI Class A

●  IEC/EN 61000-3-2: Power Line Harmonics

●  IEC/EN 61000-3-3: Voltage Fluctuations and Flicker

●  EN 50121-4: Railway EMC

Immunity

Cisco ASR 9900 platforms are designed to meet these standards:

●  IEC/EN-61000-4-2: Electrostatic Discharge Immunity (8kV Contact, 15kV Air)

●  IEC/EN-61000-4-3: Radiated Immunity (10V/m)

●  IEC/EN-61000-4-4: Electrical Fast Transient Immunity (2kV Power, 1kV Signal)

●  IEC/EN-61000-4-5: Surge AC Port (4kV CM, 2kV DM)

●  IEC/EN-61000-4-5: Signal Ports (1kV)

●  IEC/EN-61000-4-5: Surge DC Port (1kV)

●  IEC/EN-61000-4-6: Immunity to Conducted Disturbances (10Vrms)

●  IEC/EN-61000-4-8: Power Frequency Magnetic Field Immunity (30A/m)

●  IEC/EN-61000-4-11: Voltage DIPS, Short Interruptions, and Voltage Variations

●  EN 50121-4: Railway EMC

Safety

Cisco ASR 9900 platforms are designed to meet these standards:

●  UL/CSA/IEC/EN 60950-1

●  IEC/EN 60825 Laser Safety

●  ACA TS001

●  AS/NZS 60950

●  FDA: Code of Federal Regulations Laser Safety
